304 Stainless Steel Peanut Butter Processing Line High Output CE Certificate
Feature:
Peanut butter production line is made up of rotating tooth, still tooth, impeller, drive motor, etc. Concentrate the performance of homogenizers, grinding machine, mixer, and other machinery and performance in one, with the advantages of compact structure and fine grinding. Peanut will be processed with high temperature baking, peeling, grinding into original peanut butter, add stabilizer to make stable type peanut butter, add flavor material to make peanut butter flavor, it is the ideal equipment for peanut butter processing.
Peanut butter making machine processing:
Description:
This device can produce a variety of peanut butter, for instance stable peanut butter, creamy peanut butter, salty peanut butter, sweet peanut butter and other peanut butter. We are able to produce peanut butter line with different capacity in accordance with customers’ needs and requirements.
Application :
This machine is widely applied in the industrial productions of food (Peanut butter, sesame jam, almond nuts butter, soy milk, dairy products, soft drinks and etc.), medicine (syrups, nutrition liquid, Chinese herb extracts, poultice and etc.), daily chemical products (tooth paste, cosmetic, washing agent and etc.), chemical industry products (pigment, dye, dope, lubricant, petroleum activator and etc.) and the flotation and emulsification of the explosives.

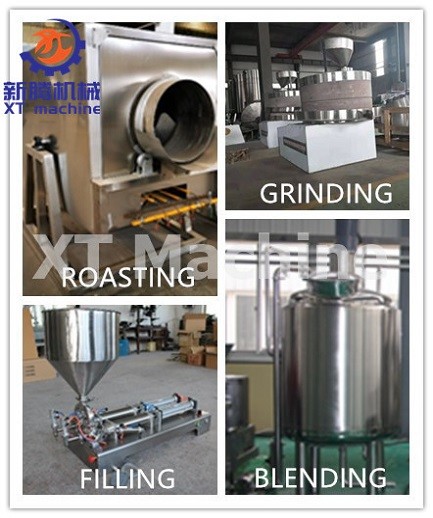

Main Equipments function:
Cleaning: Take away the light impurity, stoner by gravity de stoner system, the stone will follow up to the de stoner’s exit, the light impurities will be sucked by air cyclone system.
Roasting: continuous nut roaster working temperature 150-180 C, roasting time 40-45 minutes.
Peeling: Remove the red skin by the frication of two rubber rollers and sucked by the cyclone system. Most of Peanut will be split in half-piece or much small, the bitter germ will be separated by the vibrating sieve at bottom of blancher, finally blanched peanuts will falll to the selecting conveyor.
Primary Grinding: Use Disc grinder to make the first grinding, the blanched peanut will be feed into the primary grinder’s first ,then they will be put by a kind of screw force, peanut will fall to limited gauge between two disc and be grinded by sand disc in high speed. The primary butter will flow to the tank and pumped into the second grinder . The fineness grinding is reach to 60-100mesh. It must able to run 24 hours without stop because of heat.
Second grinding: the purpose of second grinder is for fine grinding. the fineness grinding is reach to 150-160mesh. Water cooling system should be supplied in order to reduce the grinders chamber temperature (both primary and second grinder).its must not over heat, provide sensitive part and easy part to be replace. Time or life spent of part, like seal, cleaning method, assembling method.
Blending : This tank has two layers, with two functions, mixing and Make the butter more homogeneous. Moreover, it can also decrease the butter’s temperature with large extent. this tank must have gauge temperature to measure how hot.
Cooling: The butter is pumped into cooling machine, through pipes twisted inside of cooler, the ideal temperature will obtain. It must have control temperature from cooling Temperature to 45-60C adjustable.
Refrigerator: it’s the key part of the whole plant, the butter’s temperature from second grinder can reach to 90-95C,in order to reduce the temperature of 30C and make it prepared to be packed ,we have to build a cooling system.
The refrigerator work and produce cooling water (water temperature can be set on),cooling water will be divided into 3 direction; first to provide cooling water for grinders, second for the blending tank, third for the cooling machine. The cooling water can used repeatedly, so no loss on water. All connecting pipes in the cooling system is made of SUS304
Degassing: Remove the air to make peanut butter more stable

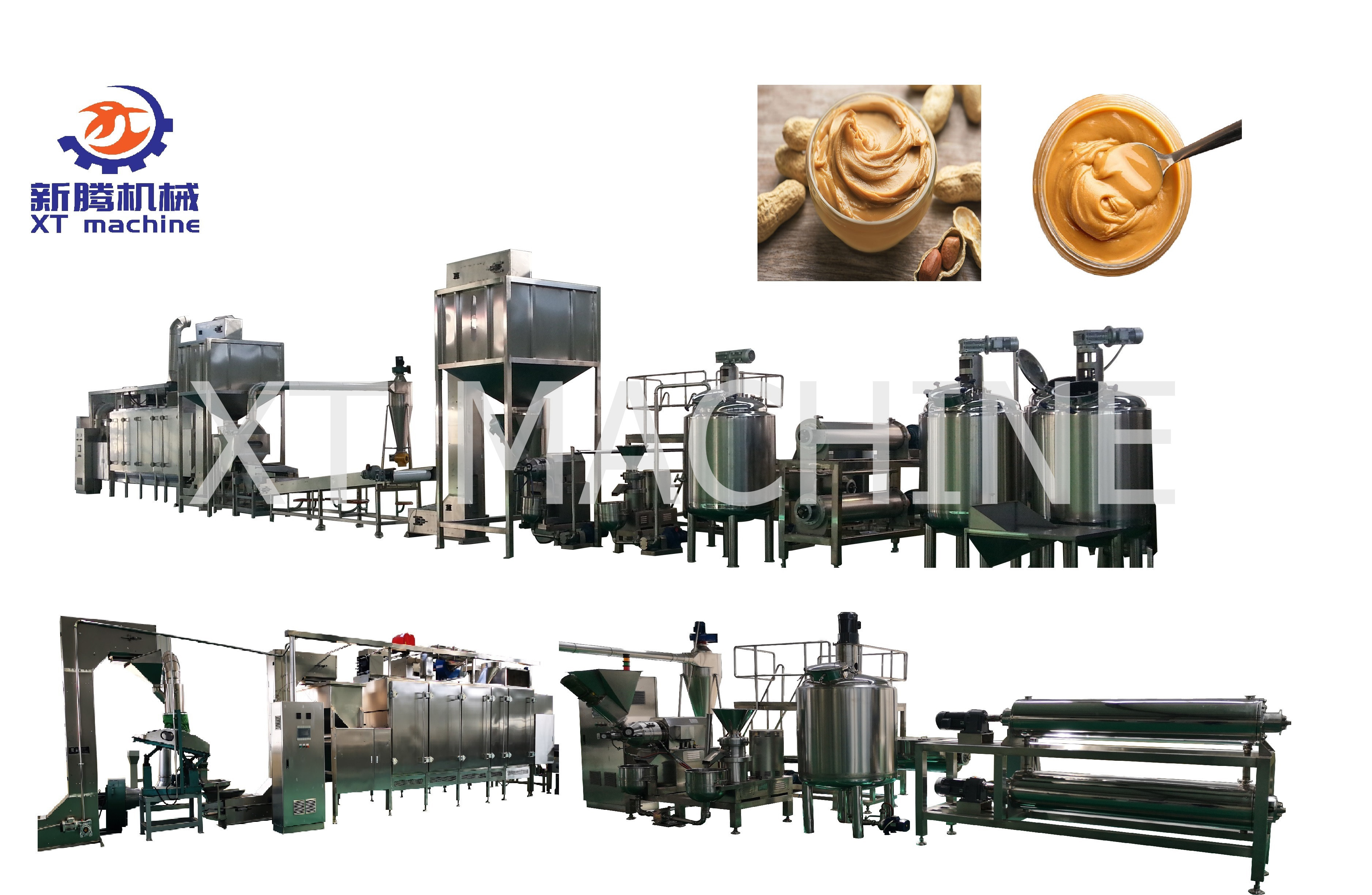

Peanut butter making line whole pic:
